Wheeled Tractor
70-90HP Wheeled Tractor
This product has been discontinued and removed from our shelves.

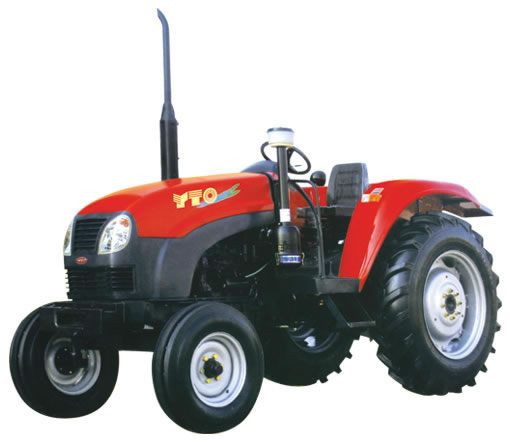

Thanks for your interest in our website. We at YTO are a wheeled tractor manufacturer in China. We believe our tractor will give you a comfortable experience. As shown in the pictures, our 70-90 HP wheeled tractor adopts streamlined design and is simple in structure.
Features
The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.
The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.
The full hydraulic steering system is utilized for easy operation.
High safety is ensured due to the use of the wet disc brake.
Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).
Our wheel loader adopts double action clutch. German LUK clutch is available for your choice.
70-90HP Wheeled Tractor Specifications
Model | YTO-X704 | YTO-X754 | YTO-X804 | YTO-X854 | YTO-X904 |
Tractor | |||||
Type | 4×4 | ||||
Overall dimensions (LxWxH)(mm) | 4250×2145×2650 | 4250×2145×2650 | 4350×2170×2740 | 4350×2170×2740 | 4350×2300×2765 |
Wheelbase(mm) | 2314 | ||||
Min. ground clearance(mm) | 370 | 370 | 430 | 430 | 440 |
Min. operating mass(with safety stand)(Kg) | 3540 | 3540 | 3675 | 3675 | 3920 |
Tyre spec., front /rear | 11.2-24/16.9-30 | 11.2-24/16.9-30 | 11.2-28/13.6-38 | 11.2-28/13.6-38 | 13.6-24/16.9-34 |
Wheel tread, front/rear | 1569~2005/ 1500~2100 |
1569~2005/ 1500~2100 |
1630~1960/ 1500~2100 |
1630~1960/ 1500~2100 |
1562~2000/ 1520~2120 |
Steering | Full hydraulic | ||||
Brake | Oil immersed, disk type | ||||
Diesel engine | |||||
Model | LR4A3-23 | LR4B5-23 | LR4B5-23 | LR4M5-23 | LR4M5-23 |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion | ||||
Displacement (L) | 4.33 | 4.95 | 4.95 | 5.13 | 5.13 |
Rated power/speed(Kw)/(r/min) | 51.5/2400 | 55/2400 | 58.8/2300 | 62.5/2400 | 66.5/2300 |
Max. torque (N.m)/speed (r/min) | 237/1500-1700 | 254/1500-1700 | 270/1500-1700 | 302/1600-1800 | 325/1600-1800 |
Bore x stroke (mm) | 105x125 | 105x125 | 108x125 | 108x135 | 110x135 |
Transmission | |||||
Gear shift, forward/backward | 12/4 | ||||
Speed range (Km/h), forward/backward | 1.61~26.57/ 4.19~12.59 |
1.61~26.57/ 4.19~12.59 |
1.63~26.82/ 4.230~12.69 |
1.71~28.14/ 4.44~13.31 |
1.65~27.17/ 4.28 ~12.85 |
PTO power (Kw) | 44 | 47 | 50 | 53 | 55 |
PTO rotation speed (r/min) | 540/720 or 540/1000 | ||||
Clutch | 11-inch, dry, double action | ||||
Implement | |||||
Three-point linkage category | Three-point linkage category Ⅱ | ||||
Tilling depth control mode | Combined draft, position control and floating control | ||||
Lifting force(KN) | 16 | 17 | |||
Options | |||||
OECD anti-turnover bar | OECD certified anti-turnover bar or anti-turnover bar with awning | ||||
Transmission with shuttle-type gear | 12+12 | ||||
Transmission with creeper gear | 24+8 | ||||
Hydraulic output | 2 or 3 group |
Model | YTO-X700 | YTO-X750 | YTO-X800 | YTO-X850 | YTO-X900 |
Tractor | |||||
Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Overall dimensions (LxWxH)(mm) | 4250×2090×2850 | 4250×2090×2850 | 4250×2090×2850 | 4250×2090×2850 | 4250×2090×2850 |
Wheelbase(mm) | 2342 | 2342 | 2342 | 2342 | 2342 |
Min. ground clearance(mm) | 360 | 360 | 360 | 360 | 360 |
Min. operating mass(with safety stand)(Kg) | 3030 | 3030 | 3030 | 3030 | 3030 |
Tyre spec., front /rear | 7.50-16/14.9-30 | 7.50-16/14.9-30 | 7.50-16/14.9-30 | 7.50-16/14.9-30 | 7.50-16/14.9-30 |
Wheel tread, front/rear | 1400~1900/ 1500~2100 |
1400~1900/ 1500~2100 |
1400~1900/ 1500~2100 |
1400~1900/ 1500~2100 |
1400~1900/ 1500~2100 |
Gear shift, forward/backward | 12/4 | ||||
Speed range (Km/h), forward/backward | 2.01~33.10/ 5.22~15.66 |
2.01~33.10/ 5.22~15.66 |
1.92~31.72/ 5.00~15.01 |
2.01~33.10/ 5.22~15.66 |
1.92~31.72/ 5.00~15.01 |
PTO power (Kw) | 44 | 47 | 50 | 53 | 55 |
Lifting force(KN) | 16 | ||||
Diesel engine | |||||
Model | LR4105T | LR4105T | LR4108T | LRC4108T | LRC4110T |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion | ||||
Displacement (L) | 4.33 | 4.33 | 4.58 | 4.95 | 5.13 |
Rated power/speed(Kw)/(r/min) | 51.5/2400 | 55/2400 | 58.8/2300 | 62.5/2400 | 66.5/2300 |
Implement | |||||
Three-point linkage category | Three-point linkage category Ⅱ | ||||
Tilling depth control mode | Combined draft, position control and floating control | ||||
Lifting force(KN) | 16 | 17 | |||
Options | |||||
OECD anti-turnover bar | OECD certified anti-turnover bar or anti-turnover bar with awning | ||||
Transmission with shuttle-type gear | 12+12 | ||||
Transmission with creeper gear | 24+8 | ||||
Hydraulic output | 2 or 3 group |
In addition to wheeled tractor, we at YTO also offer crawler tractor, road roller, motor grader, and other products. If you are interested in any of our products, please feel secure in contacting us.
-
