2610-2800-2900 2B Series

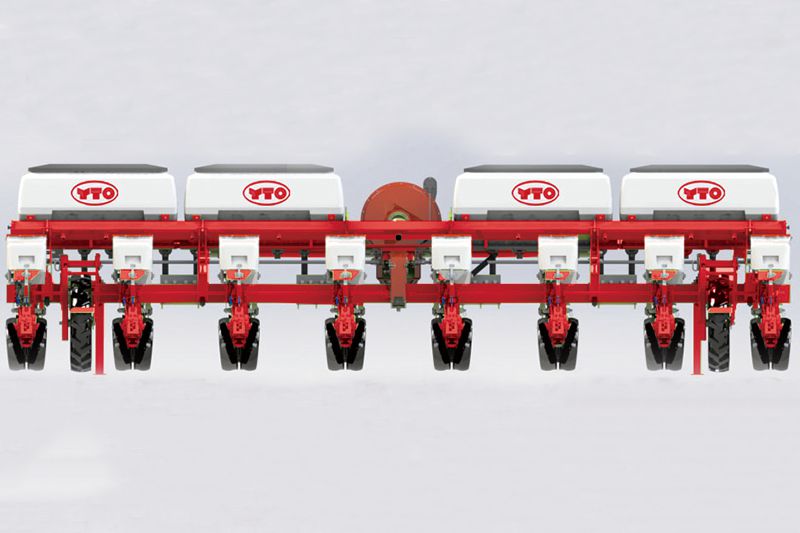

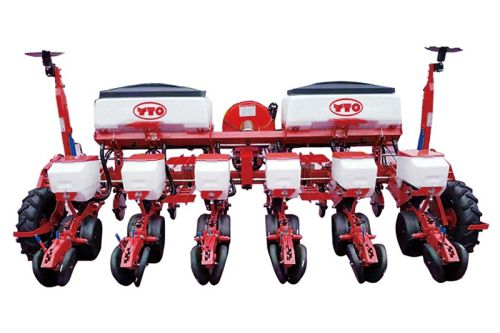

The series of pneumatic precision planter can be used for sowing different crops by quickly changing the sowing discs. It is suitable for flat farming and ridge seeding after soil preparation. During the operation, it can do the job of large-scale sowing and fertilization at one time, such as, side deep fertilization, sowing and trenching, single seed planting, soil compression and restoration.
|Structure type||Pneumatic; suspension|
|Required power (HP)||90-120||150-210|
|Dimensions (L*H*W) (mm)||2040*4700*1900||2040*5900*1500||2040*4400*1500|
|Working speed (m/s)||1.6-2.2|
|Working width (cm)||390 (252-420)||520 (336-560)||390|
|Row space (cm)||65 (42-70)||65 (42-80)||130|
|Number of rows||6||8||9|
The seed drill can complete fertilization, sowing, mulching and soil compression at the same time. It is mainly used for wheat and cereal strip sowing as well as sorghum and soybean sowing.
|Working width (cm)||360||540|
|Working depth (mm)||30～80|
|Total number of rows||24||36|
|Required power (HP)||50～120||75～180|
|Seed box volume||615||920|
|Fertilizer tank volume (L)||570||850|
