85–115 HP Orchard Tractor | ROPS Tractor

Narrow Tractor / Orchard Tractor, 85-115HP

Features

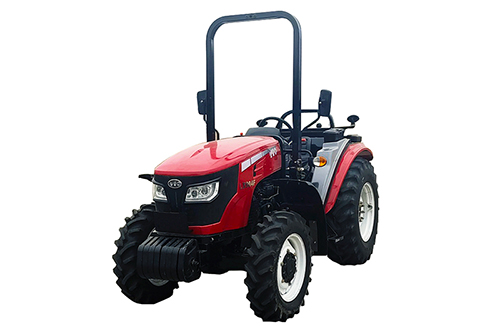

Designed with a compact structure suitable for orchard and narrow-area operations, with optional ROPS structure for improved safety and passability.
Powered by YTO diesel engines featuring low vibration, strong power, and low fuel consumption.
Standard 12F/4R gearing, with optional 12F/12R or 24F/8R configurations to suit various tasks. A synchronized main gearbox is also available for smoother shifting.
An independent dual-action clutch allows separate control of travel and the Power Take-Off (PTO), significantly boosting operational efficiency.
Equipped with hydrostatic power steering for exceptionally light and flexible handling.
Hydraulic wet disc brakes provide reliable stopping power with minimal operator effort.

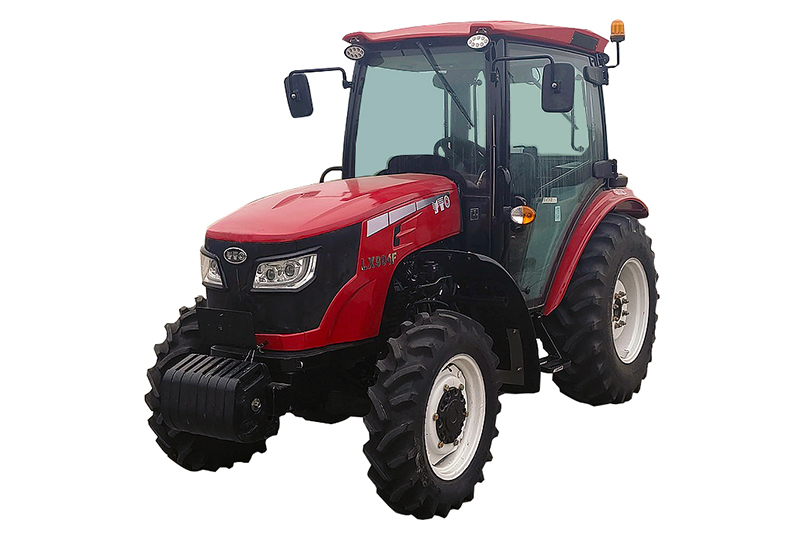

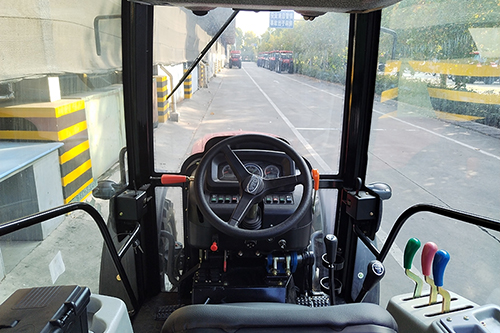

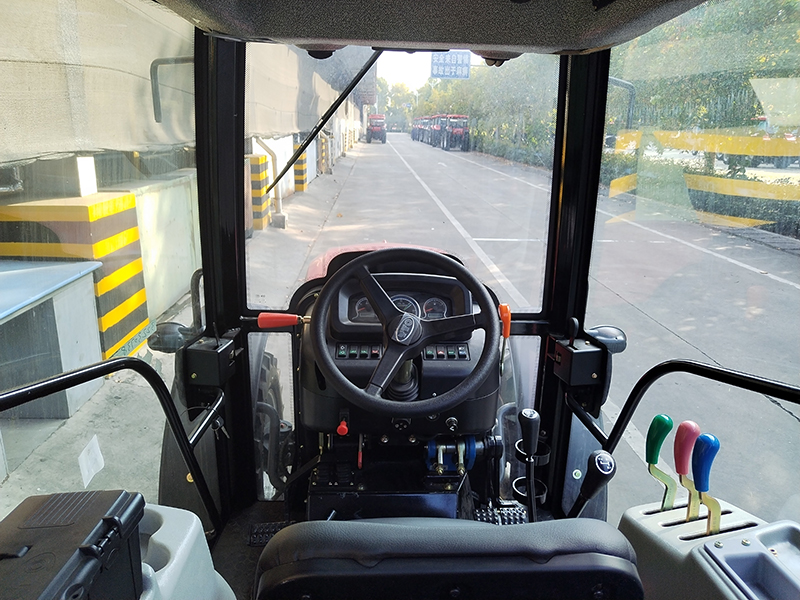

The four-post cab offers excellent all-around visibility. For improved comfort, air conditioning and a heating system are available as options.

Specifications

Model	NLX854F	NLX904F	NLX954F	NLX1054F	NLX1104F	NLX1154F
Engine type	4 cylinder, naturally aspirated diesel engine			4 cylinder, turbocharged & intercooled CRDi diesel engine
Rated engine HP (kW)	62.5(85)	66.2(90)	70(95)	77.2(105)	81(110)	84.5(115)
Engine speed (rpm)	2300/2200			2200
Clutch	Single/double action
Gears	12F/4R, 12F/12R, 24F/8R
Speed range (km/h)	1.73-28.8
Brake	Wet, disc
Rear PTO (rpm)	540/1000
Lift capacity (pivot point) (KN)	≥23

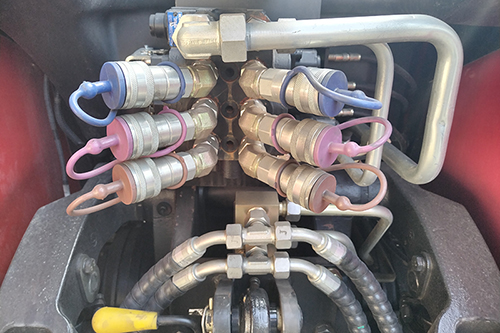

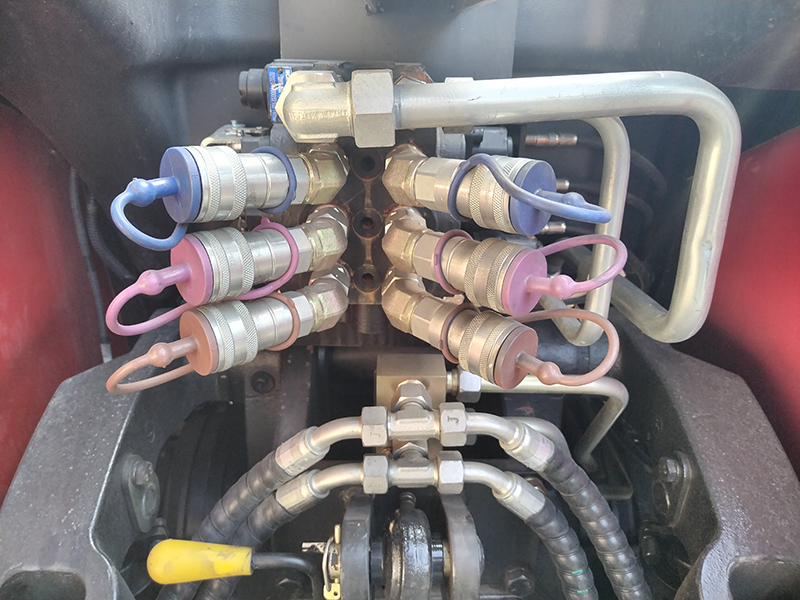

Hydraulic outputs (set)	3
Dimensions (LWH) (mm)	416515802350 (Cab) /2530 (ROPS)
Wheelbase (mm)	2184
Ground clearance (mm)	300
Track width (F/R) (mm)	1260/1150
Min. turning radius (m)	≤3.5
Tyre (F/R)	9.5-20/14.9-24
Total mass (kg)	3422 (Cab) /3222 (ROPS)
