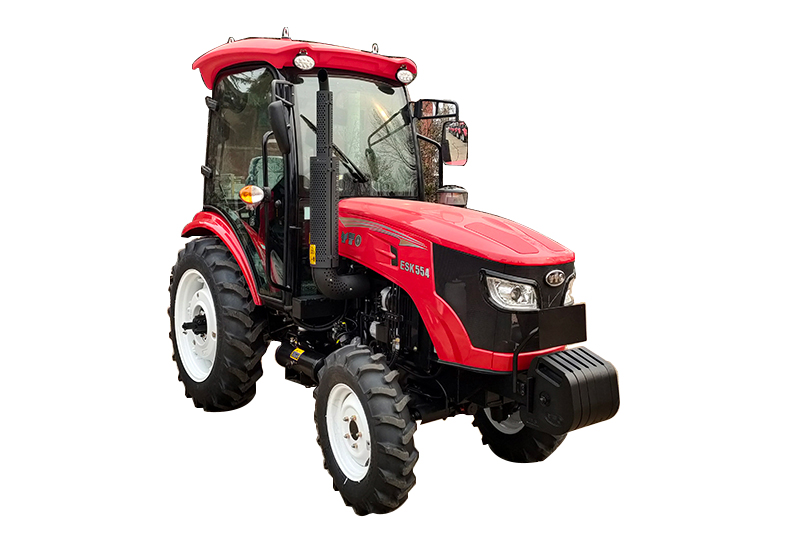

Narrow Tractor / Orchard Tractor, 35-55HP

YTO-NSK3543F/ NSK4043F/ NSK4543F/ NSK5043F/ NSK5543F

Narrow Tractor / Orchard Tractor, 35-55HP
  • Narrow Tractor / Orchard Tractor, 35-55HP
  • Narrow Tractor / Orchard Tractor, 35-55HP

Narrow Tractor / Orchard Tractor, 35-55HP

YTO-NSK3543F/ NSK4043F/ NSK4543F/ NSK5043F/ NSK5543F
Features

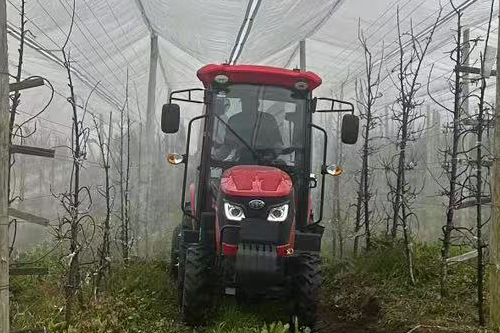

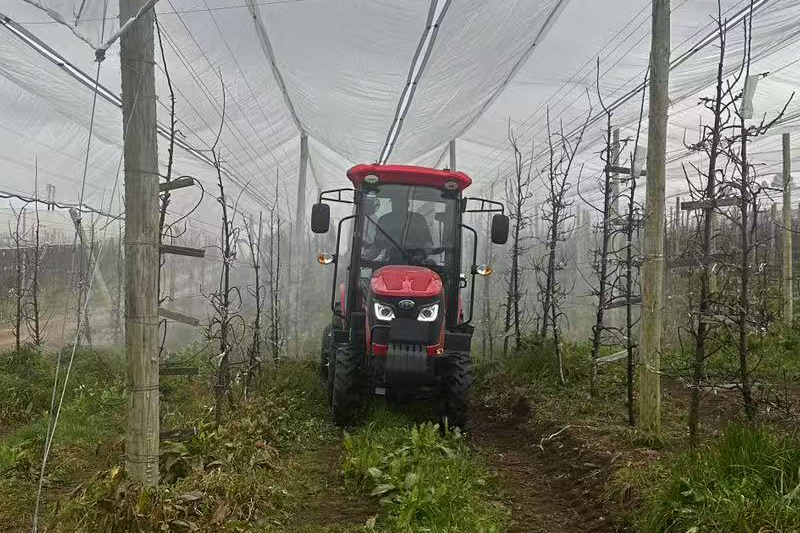

  • With a minimum overall width of ≤1.1m, this tractor is purpose-built for navigating the tightest rows in orchards and other confined operational areas.
  • Hydraulic power steering ensures light control and agile maneuvering.
  • The side-mounted gear lever allows for intuitive and convenient operation.
  • Integrated front axle housing provides durability for high load capacity.
  • The four-post cab design offers an excellent view.
  • Optional air brake system and two hydraulic outputs.

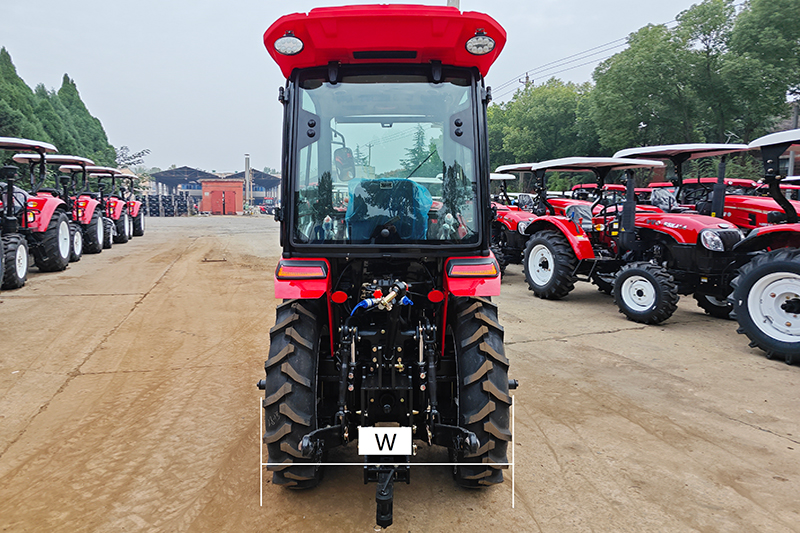

  • Width: 1100mm
    Width: 1100mm

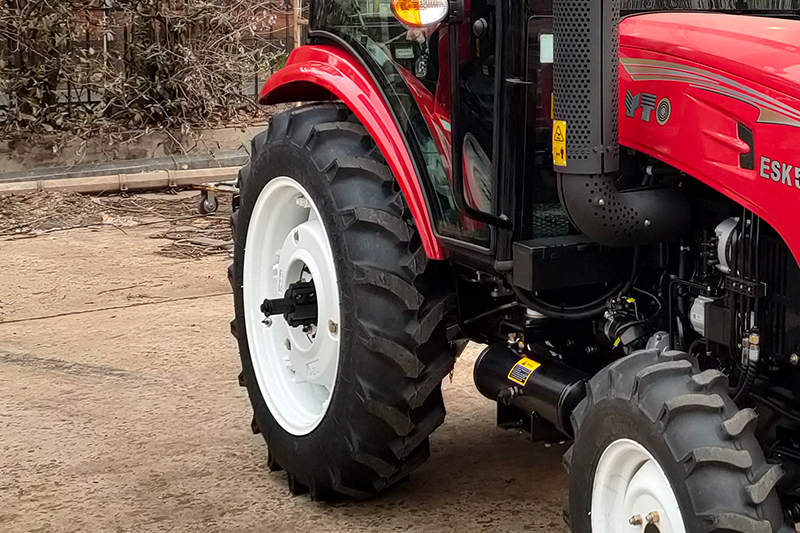

  • Sliding rear axle with steplessly adjustment
    Sliding rear axle with steplessly adjustment

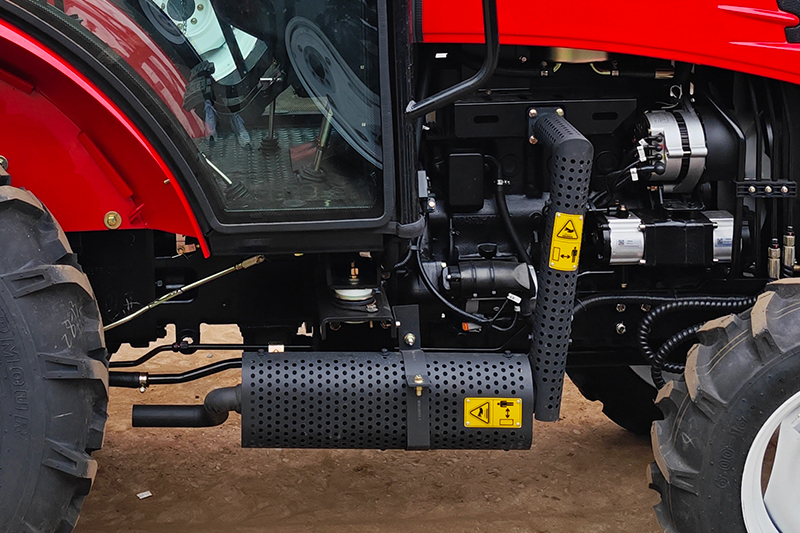

  • Under-mounted muffler
    Under-mounted muffler
Specifications
Model NSK3543F NSK4043F NSK4543F NSK5043F NSK5543F
Engine type 4 cylinder, naturally aspirated diesel engine
Rated engine HP (kW) 25.8(35) 29.4(40) 33.1(45) 36.8(50) 40.5(55)
Engine speed (rpm) 2200 2400 2300
Clutch Double action
Gears 8F/2R (option: 8F/8R)
Speed range (km/h) 1.66-24.6 1.89-28
Brake Dry, shoe
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (KN) ≥12
Hydraulic outputs (set) 1 or 2
Dimensions (L*W*H) (mm) ROPS 3700*1090*2350 3700*1090*2380 3700*1285*2420
Cab 3700*1090*2400 3700*1090*2430 3700*1285*2475
Wheelbase (mm) 1860
Ground clearance (mm) 290 300 320
Min. turning radius (m) 5.5±0.3
Track width (F/R) (mm) 900 / 900-1100 1000/1000-1100 1000/1000-1100
Tyre (F/R) 6.00-16 / 9.5-24 (option: 6.50-16/11.2-24) 6.50-16/11.2-24 (option: 7.50-16/12.4-24) 7.50-16/12.4-24
Total mass (ROPS/Cab) (kg) 1820/1970 1960/2110 2050/2200 2090/2250
