50–75 HP Orchard Tractor | Farming Equipment

Narrow Tractor / Orchard Tractor, 50-75HP

Features

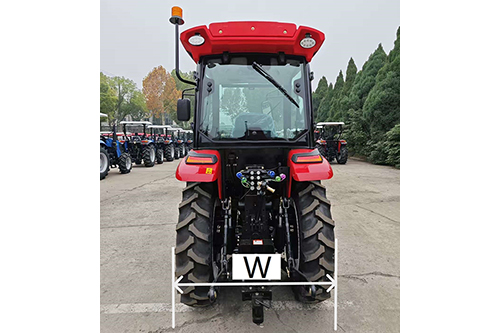

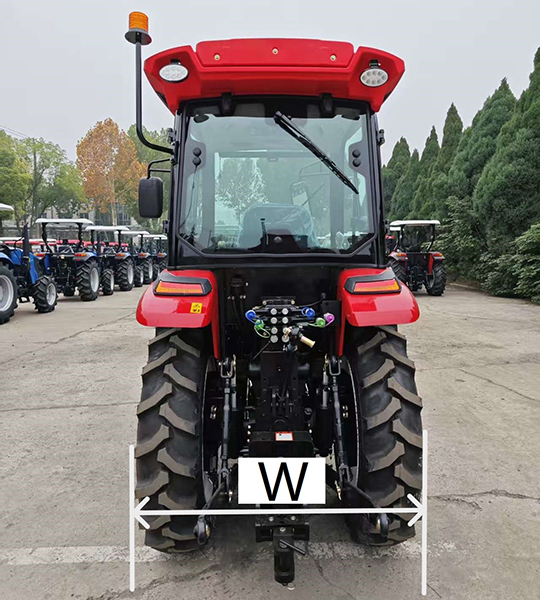

Features compact design with a minimum overall width of ≤1.3m, making it the ideal choice for navigating coffee plantations, orchards, and other narrow, confined spaces.
Standard 8F/8R shuttle shift configuration, with an optional 16F/8R creeper gear configuration for optimal operation across diverse tasks.
Steplessly adjustable rear wheel track to suit various agronomic requirements.
Equipped with wet disc brakes for smooth and reliable braking.
Hydrostatic steering provides light and flexible handling.
An optional air brake system is available to safely meet heavy trailer towing operations.

Specifications

Model		NMF5045F	NMF7546F
Engine type		4 cylinder, naturally aspirated diesel engine	4 cylinder, turbocharged diesel engine
Rated engine HP (kW)		36.4(50)	55.2(75)
Engine speed (rpm)		2300	2200
Clutch		Single/double action
Gears		8F/8R (option: 16F/8R)
Speed range (km/h)		2.17-36.6	2.25-29.37
Brake		Wet, disc
Rear PTO (rpm)		540 / 540E (optional 540 / 1000)
Lift capacity (pivot point) (KN)		≥17	≥19
Hydraulic outputs (set)		1 or 2
Dimensions (LWH) (mm)	ROPS	388013002450	398015002450
	Cab	388013002560	398015002570
Wheelbase (mm)		1934	2030
Ground clearance (mm)		320	350
Min. turning radius (m)		4.8±0.3
Track width (F/R) (mm)		1000 / 1000-1200
Tyre (F/R)		7.50-16/11.2-28 (option: 8.3-20/12.4-28)	9.5-16/14.9-24 (option: 8.3-20/12.4-28)
Total mass (ROPS/Cab) (kg)		2510/2660	2710/2860
