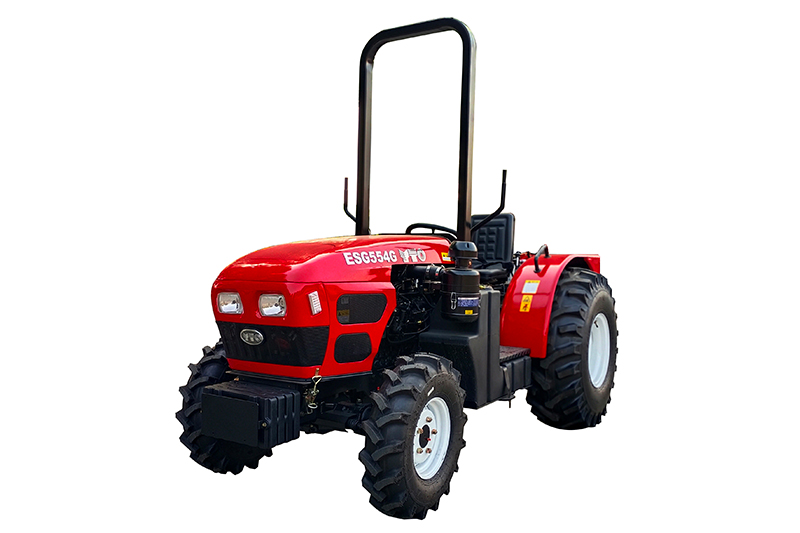

50–75 HP Orchard Tractor | Side Gear Lever

Narrow Tractor / Orchard Tractor, 50-75HP

Features

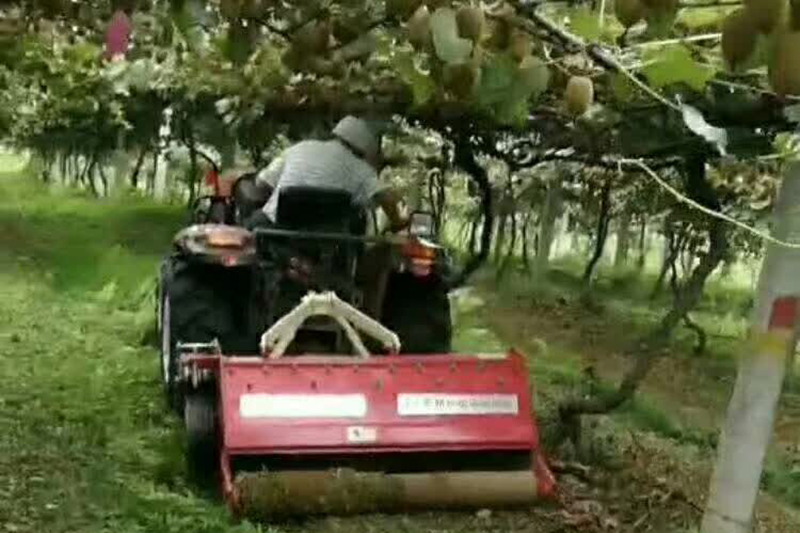

These tractors feature a compact design, making it ideally suited for orchards, forestry plantations, and other low-clearance, narrow spaces, while remaining fully capable for general farmland operations.
16F/8R gears provide a wide speed range and high operating efficiency.
A side-mounted gear lever allows for comfortable operation from the seated position.
A large front axle steering angle combined with a small turning radius enables exceptional maneuverability in confined areas.
Hydrostatic steering system provides effortless, responsive, and precise control.

Specifications

Model	ESG5045G	ESG5545G	ESG6045G	ESG6545G	ESG7045G	ESG7545G
Engine type	4 cylinder, naturally aspirated diesel engine			4 cylinder, turbocharged diesel engine
Rated engine HP (kW)	36.8(50)	40.5(55)	44.1(60)	47.7(65)	51.5(70)	55.2(75)
Engine speed (rpm)	2200			2300
Clutch	Double action
Gears	16F/8R
Speed range (km/h)	0.44-33.48
Brake	Dry, shoe
Rear PTO (rpm)	540/1000
Lift capacity (pivot point) (KN)	≥12.7
Hydraulic outputs (set)	1 or 2

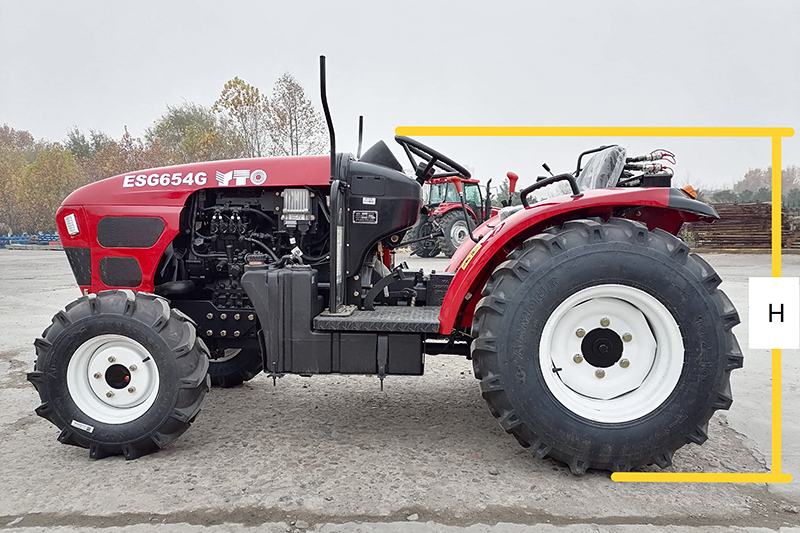

Dimensions (LWH) (mm)	308013801260 (steering wheel)
Wheelbase (mm)	1740
Ground clearance (mm)	265

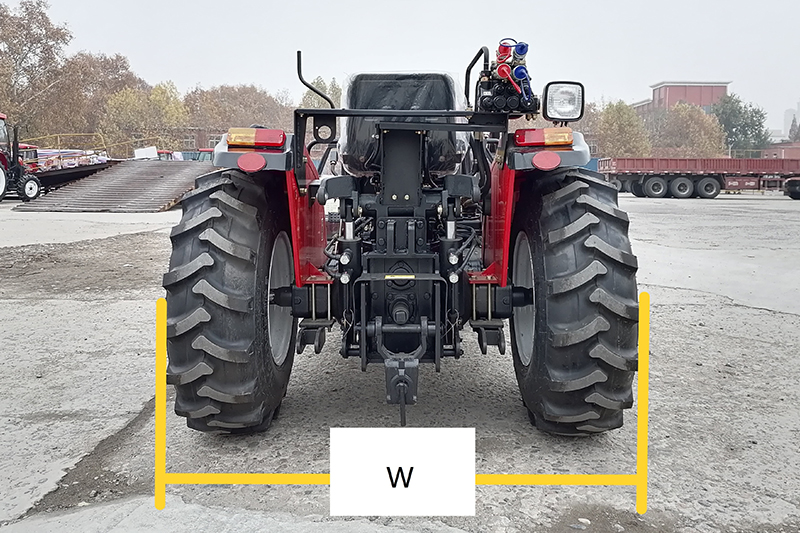

Track width (F/R) (mm)	1000 /1000-1200
Min. turning radius (m)	4.8±0.2
Tyre (F/R)	6.00-14 /13.6-16
Total mass (ROPS) (kg)	1710			1740
